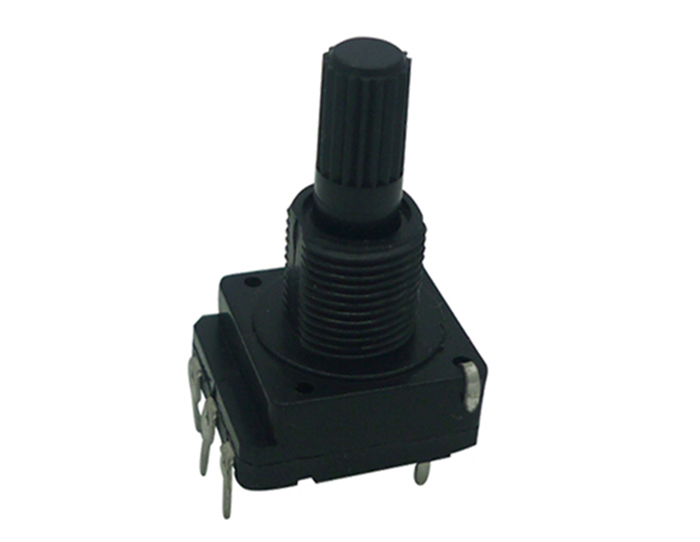

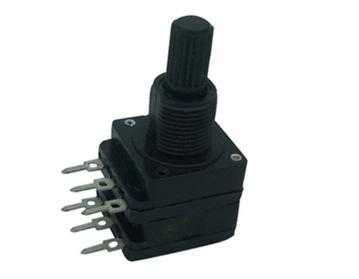

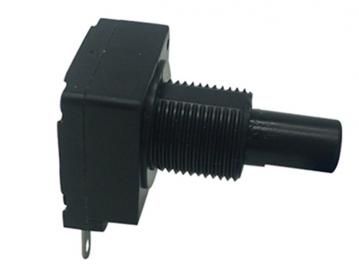

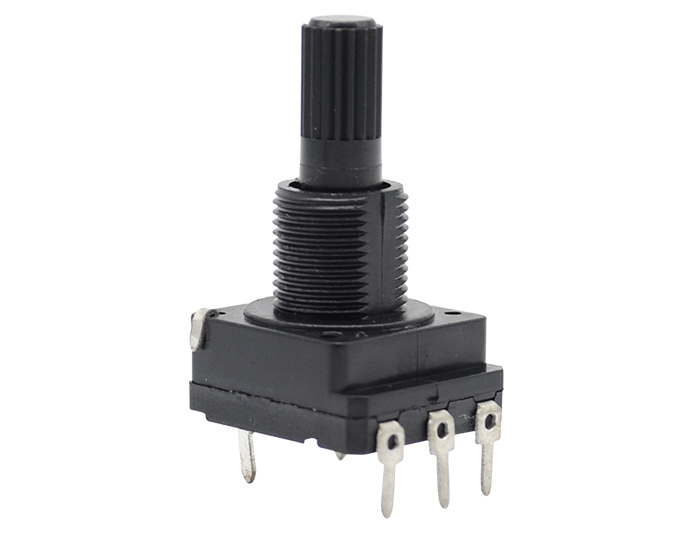

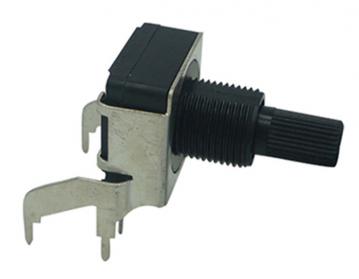

WH0162-1J Rotary Potentiometers with insulated shaft
    • WH0162-1J Rotary Potentiometers with insulated shaft
    • WH0162-1J Rotary Potentiometers with insulated shaft
    • WH0162-1J Rotary Potentiometers with insulated shaft
PRODUCT INFORMATION

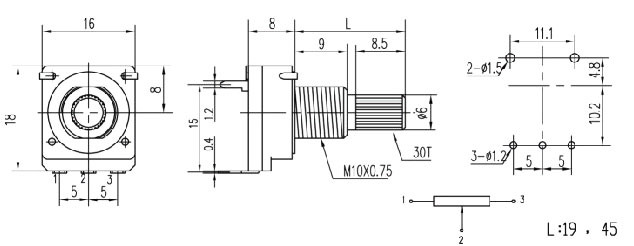

Outline Drawing

Specifications

Model

WH0162

Rotation angle

300º

Operating force

20-200gf.cm

Power Rating

0.125W 0.06W

Withstand voltage

200V 150V

Rotational noise

≤47mV

Insulation resistance

DC250V 100Mohm min

Shaft stopper strength

3Kgf.cm

Rotation life

10000cycles
