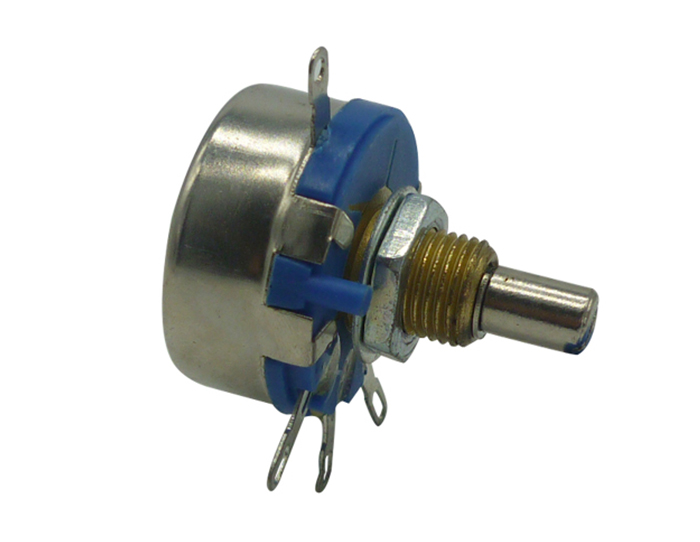

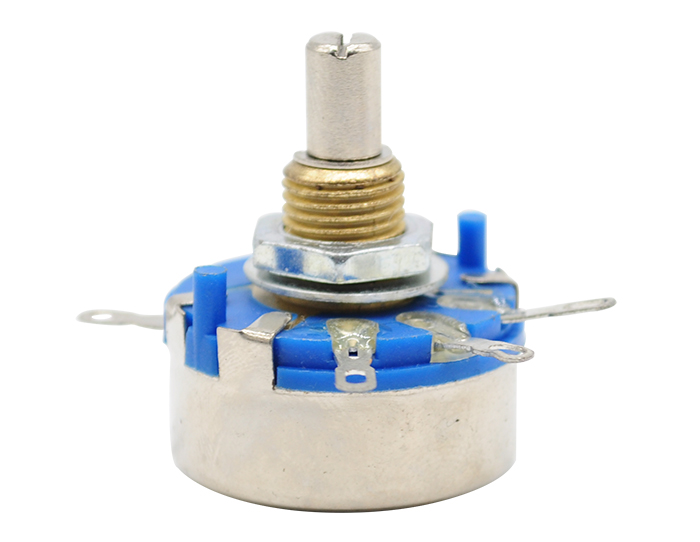

WH118-1A 24mm Rotary potentiometers with metal shaft for welding machine
    • WH118-1A 24mm Rotary potentiometers with metal shaft for welding machine
    • WH118-1A 24mm Rotary potentiometers with metal shaft for welding machine
    • WH118-1A 24mm Rotary potentiometers with metal shaft for welding machine
    • WH118-1A 24mm Rotary potentiometers with metal shaft for welding machine
PRODUCT INFORMATION

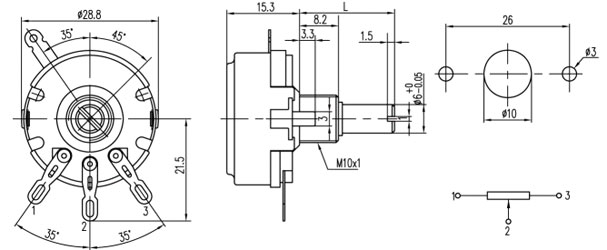

Outline Drawing



Specifications

Model

WH118-1A

Rotation angle

270º

Operating force

20-200gf.cm

Power Rating

2W 1.6W

Withstand voltage

200V 150V

Rotational noise

≤47mV

Insulation resistance

DC250V 100Mohm min

Shaft stopper strength

3Kgf.cm

Rotation life

10000cycles
